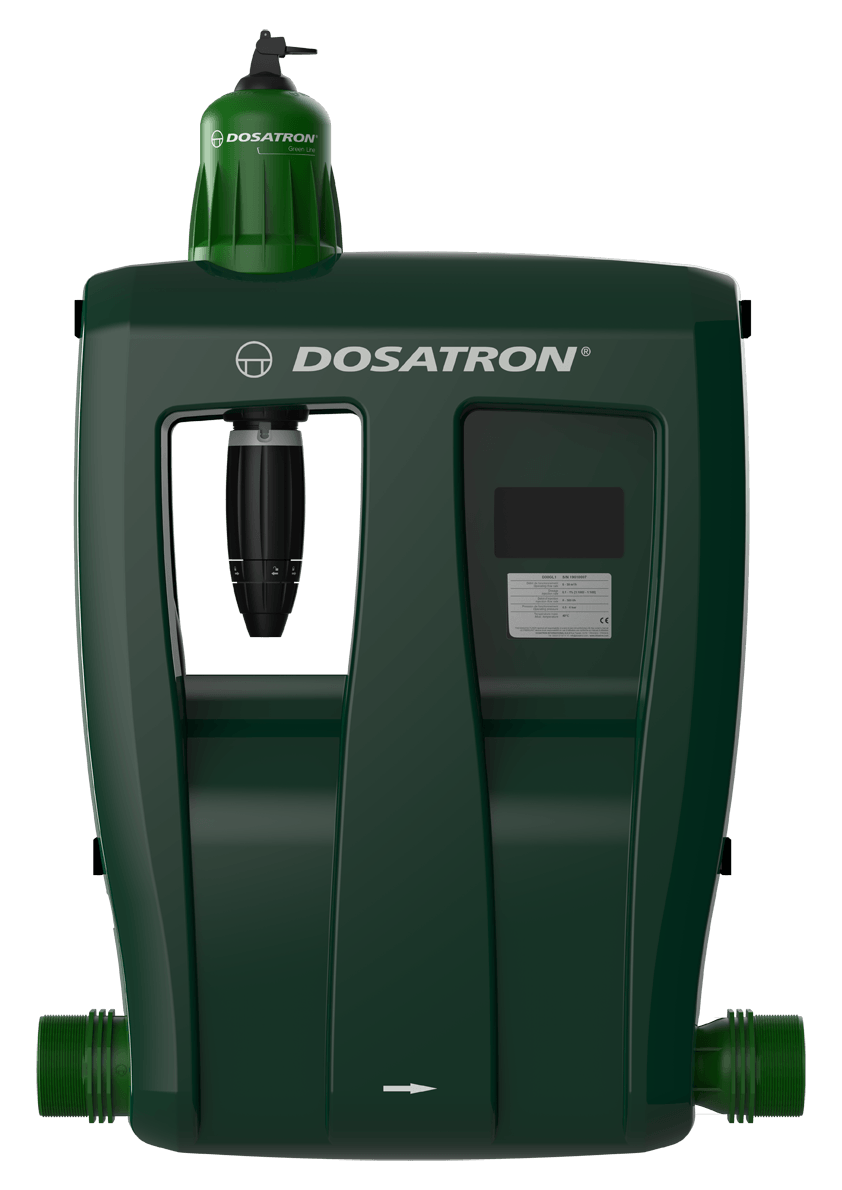

D30GL1 - A high-flow solution for irrigation The D30 GL range meets the needs of high throughput treatment from 8 to 30 m3. Unique and patented intelligent flow division technology Proportional dosing and without electricity Proportionality dependent on water flow Integrated homogenization

Injection range 0,1 – 1 % [1 :1000 – 1 :100]

Water flow range 8 - 30 m3/h

Operating water pressure 0,5 - 8 bar

Concentrated additive injection 8 - 300 l/h

Stroke volume ~ 0,53 l

Connections BSP 3'' M Ø 80x90mm + 2 flanges PVC DN 80 EN PN16 Hose : PVC Ø 16x22mm - Lg 4m
